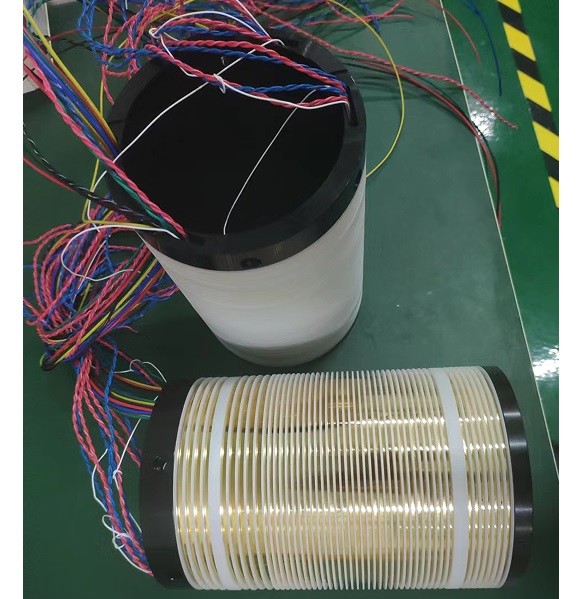

Precious Metal Contact Slip Ring Electric Motor 36 Circuits Transmitting 10A Per Circuit,Gold-Gold Contacts Slip Ring
HRS120 series slip rings are manufactured by our deft team members, with premium grade metal-alloys through the edge-cutting technologies. The offered slip rings are assembled in various mechanical components to increase the rate of power transmission.
It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify system design and eliminate possible damage while in the rotation.
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
Using a 90° V-groove ring design for each ring, the LPS-06 provides smoother running, lower torque and lower electrical noise than competitive slip rings.
| Electrical Spec. | | Options |
| Rating voltage | 380VAC | Flange for set up |
| Rating current | 5A /Ring,10A /Ring | The wire exit direction,length is optional |
| Insulation resistance | 1000MΩ@500VDC | Can combine more circuits:1-126Ring |
| Dielectric strength | 600VDC@50HZ | Higher voltage and current capacity |
| Electrical noise | 10mΩ@6VDC,50mA,5Rpm | The wire exit direction,length is optional |
| Mechanical Spec | Environment |
| Speed | 0-500Rpm | Working temperature | -40℃~+80℃ |
| Torque | 60N.cm | Mechanical vibration | MIL-SID-810E |
| Protection class | IP54--IP68 | Humidity | 10% to 90% RH |
| Contact material | Precious Metal | Materials | Lead Free,RoHS compliant |
| Lead Wire | 12 color Teflon | CE Certified | YES |
| Life | 50 million revolutions | | The life of slip ring is up to revolutions, operation environment and temperature etc. |
As a precious slip ring manufacturer for more than 10 years,Hunan Haurem Technology Co. Ltd. (HRM) owns a skilled management team and excellent design team already developed more than then thousands slip ring solutions, this keeps our technology advanced always around the world.
According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
