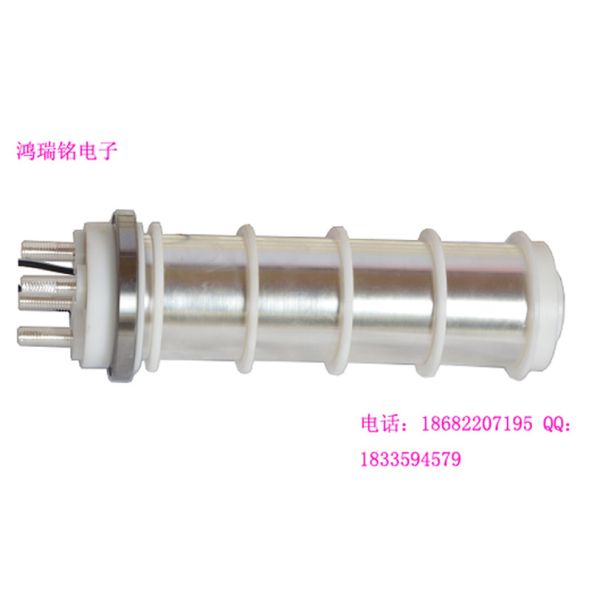

1000V High Current Conductive Slip Ring 1000A With CE Certified

Name: 1000V High Current Conductive Slip Ring 1000A With CE Certified
Brand: Haurem
Price: 1 USD

China 1000V High Current Conductive Slip Ring 1000A With CE Certified wholesale

Brand Name : Haurem

Model Number : HRI500

Certification : CE RoHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pieces/month

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Advatage : high current low cost high stability and reliability

Channel : 1~216

Contact Resistance : ≤10mΩ ( 50rpm )

Electrical Noise : Max 30mΩ

Feature : precious metals and multi contact points in each circuit

Operating Humidity : 60%RH or higher

Rotating Speed : 100RPM

Series : Conductive Slip Ring

Temperature : -20℃~+80℃

Voltage Rating : 1000VAC/VDC

Contact Now

1000V high current conductiove slip ring rated current for each ring can be achieved to 1000A

Haurem company's HRI High current slip ring is specially designed for the high power totary equipments, rated current for each ring can be achieved to 1000A. Our advantages for high current slip ring are low cost, high stability and reliability, can transmit signal and power together, low dynamic resistance fluctuation.

Electrical Spec.
Circuit	2~216	Housing material	Stainless
Rating voltage	1000 VDC/VAC	Speed	300RPM
Rating current	1000A/ring	Torque	60N.cm
Lifetime	>80 millions Rotation	Contact material	Precious Materal
Electrical noise	<530mΩ	Contact resistance	<10 mΩ
Dielectric strength	1000VDC@50Hz	Lead Wire	UL wire
Insulation resistance	1000MΩ@600VDC	Lead length	300mm
Working temperature	-40°C to 80°C	Seal class	IP51~IP68
Mechanical vibration	MIL-SID-810E	Humidity	10% to 60% RH
Environmental certification	Lead Free,RoHS compliant	CE Certified	Yes

1000V High Current Conductive Slip Ring 1000A With CE Certified

We Haurem company have obtained certificates of CE, RoHs, MSDS and ISO9001,with a skilled management team, advanced technology, first-class production & inspection equipments as well as a strict quality control system,we will make best efforts to explore more new products to satisfy global customers with the best quality,price and service.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
